slip ring COVERS

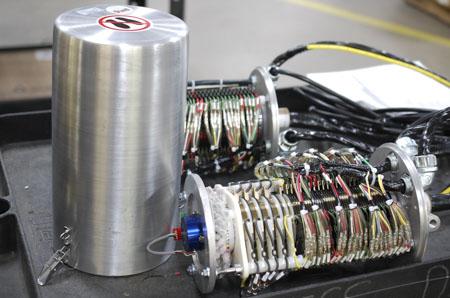

Spun Aluminum Cover

  • A style: Flat aluminum base
    D style: Dished aluminum base

    The spun aluminum design is the most common for our 1.50" bore slip ring series and is also available in our small bore slip ring series. This cover can be painted, powder coated, alodine treated or anodized based on environmental conditions.
Slip Ring Aluminum Cover
pvc slip ring cover

pvc cover

  • E style

    The PVC coveris available in our small bore slip ring series as well as our 2.00"-4.00" bore slip ring series. This cover performs well in most environmental conditions.

Dome Aluminum Cover

  • B style

    The dome aluminum cover is built for applications in humid environments, such as irrigation equipment. This cover is available in our 1.50" bore slip ring series and shorter 2.00"-4.00" bore slip rings. Based on environmental conditions, this cover can be painted, powder coated, alodine treated or anodized.
dome aluminum slip ring cover
aluminum wrap slip ring cover

Aluminum Wrap Cover

  • C style

    The wrap-around design allows for easy brush access when space above and below the slip ring is restricted. This cover is available for all bore sizes. Based on environmental conditions, the wrap-around cover design is available in stainless steel. Allows for thru bore assembly.

Stainless steel enclosures

  • SS style

    Our stainless steel enclosures are designed for extreme environments such as for a marine or oil and gas industries and prevent corrosion. 316 and 304 stainless steel enclosures available. IP 65, 67, and 68 rated sealing for enclosures.
stainless steel slip ring
Rectangle slip ring enclosure

Rectangle Enclosure

  • Q style

    The rectangular steelwas designed for industrial slip ring applications. Each side of the rectangular cover can be solid or removable for easy brush access. Slip ring viewing windows are also available in this cover design. Based on environmental conditions, the rectangular steel covers can be painted or made of stainless steel. This cover design is available for all bore sizes. Provides mounting area for large connectors and additional mounting options for the slip ring itself.

3D Printed covers

  • M style

    UEA utilizes 3D printing for both prototyping and production. 3D printed covers allow for specialty heights, provide corrosion resistance, and are nonconductive. Unmachinable profiles are possible to eliminate water intrusion.
stainless steel slip ring
clam shell slip ring

Clam Shell Cover

  • The clam shell was designed for applications where improved sealing is required. This design also allows for easy brush access when space above and below the slip ring is restricted. The clam shell cover is available for our 1.50" bore slip ring series. The cover material, polycarbonate or stainless steel, will be determined based on the slip ring length.
