Slip Rings

slip ring recent projects

Below are examples of custom slip ring solutions we have created for our customers. Contact us for a quote!

Rectangle Compact Slip Ring

Rectangle Compact Slip Ring

Width

3.5 x 4 inches (88.9 x 101.6 mm)

Height

6.1 inches (155 mm)

Circuits

20 low power and ethernet circuits

Cover

3D printed rectangle cover

Additional information

IP66 sealing and corrosion resistant

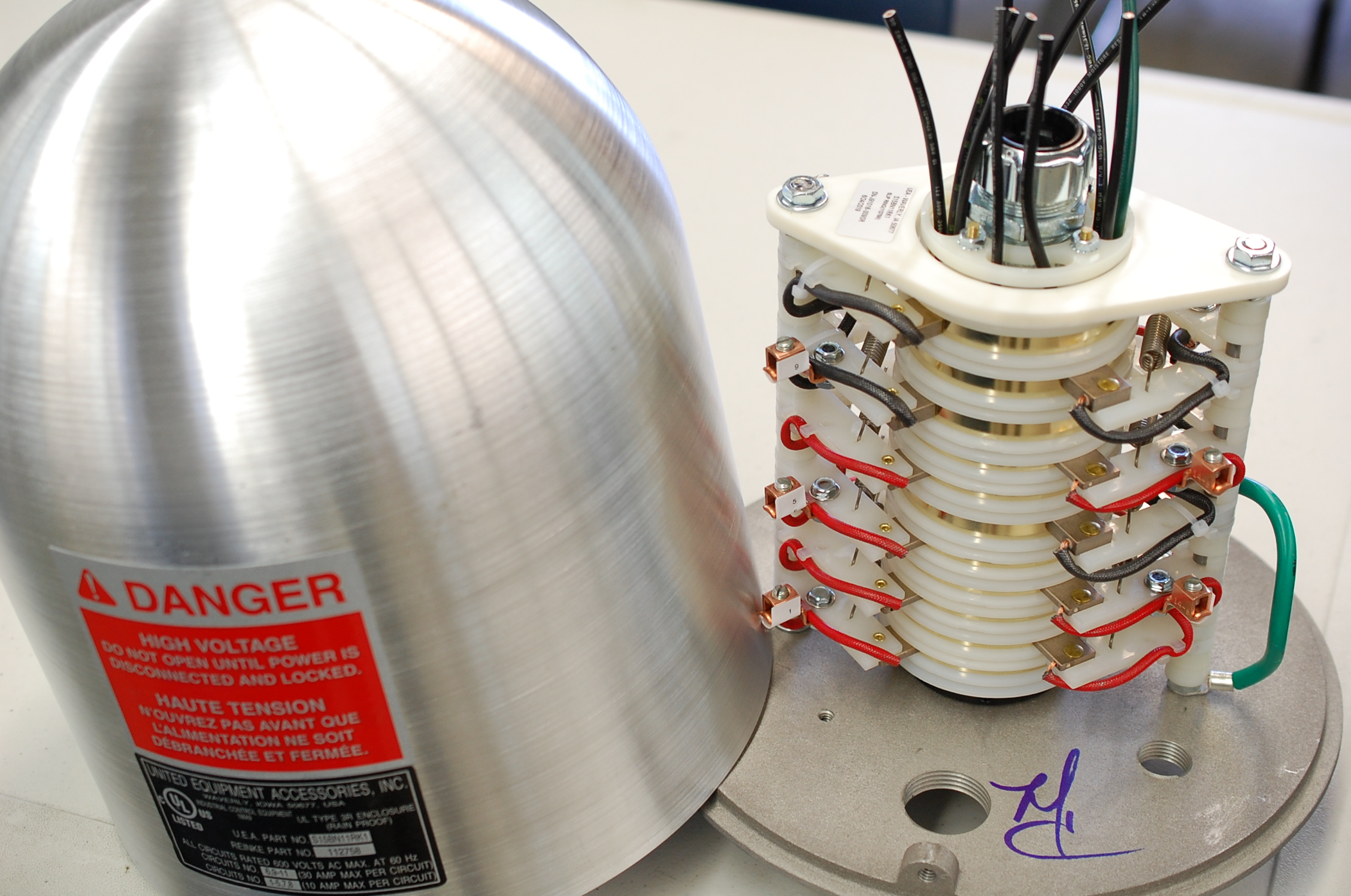

Grain Bin Slip Ring

Grain Bin Slip Ring

Bore Size

1.50”

Circuits

480V, 68 amp circuits

Cover Style & Base

Threaded Cast Aluminum Cover with Dish Aluminum Casting

Mounting Tube

Flanged with 1.25” N.P.T. female coupler

Certifications

Certified to UL 1203- Class II Division I Group F & G, cULus, CSA, and IEC 60079-31:2013 standards

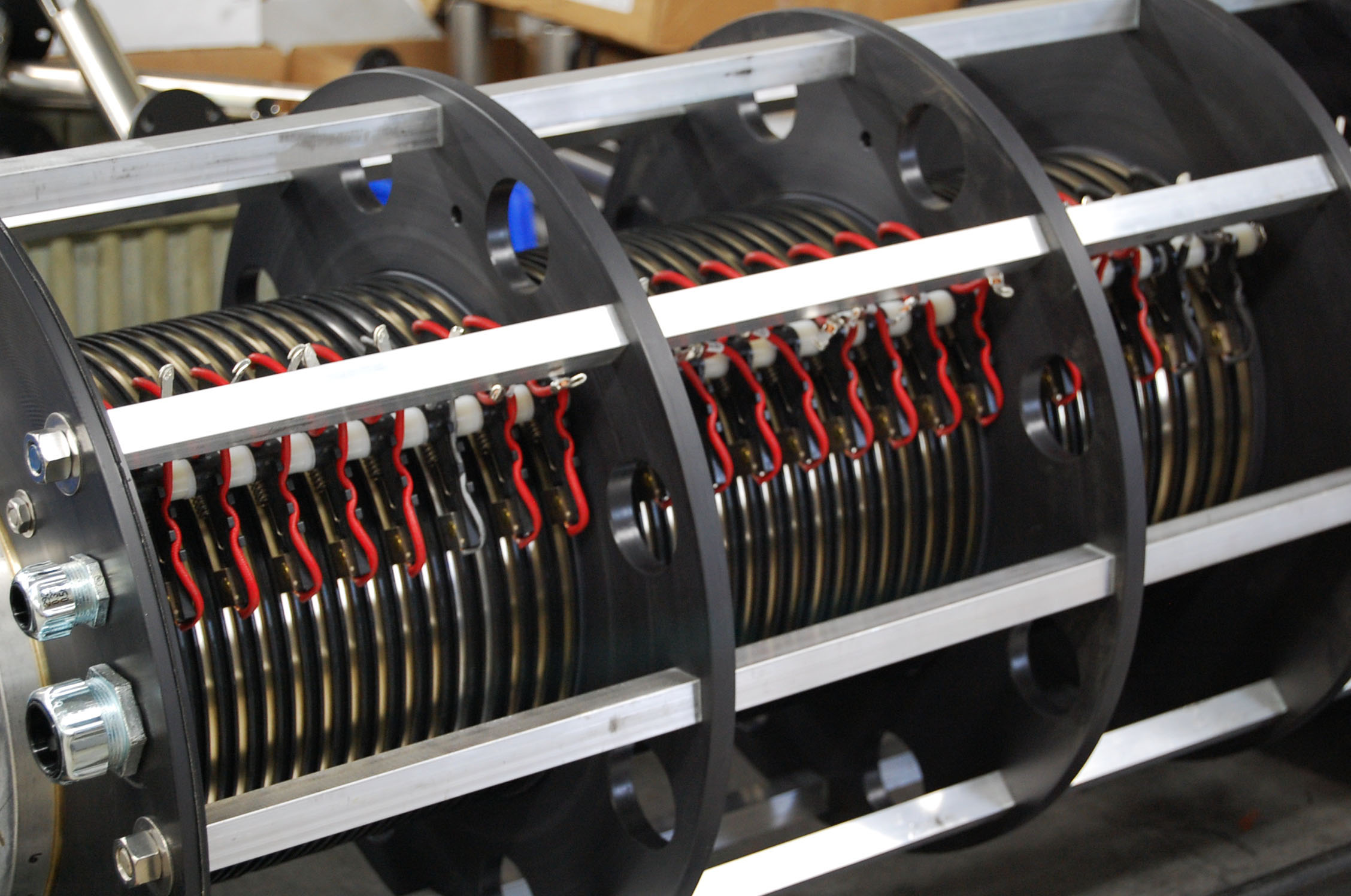

Rotary Milking Parlor Slip Ring

Rotary Milking Parlor Slip Ring

Bore Size

12.00”

Circuits

9 circuits @ 45 amp., 600 VAC; 9 circuits @ 4 amp., 28 VDC; 4 circuits @ 10 amp., 28 VDC (silver graphite brushes on brass rings)

Cover Style & Base

Aluminum wrap cover with nylatron outboard bearings

Mounting Tube

Accepts a 12.0" shaft

Additional options

Wire harnesses included
